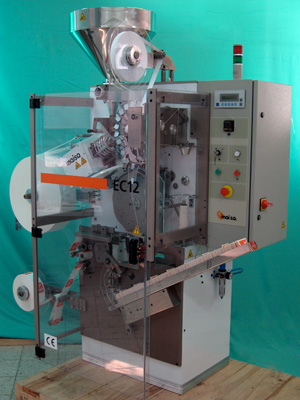

Tea Bagging Machines: EC 12/B Automatic
with Automatic Cartoning and Paper Overwrap
EC 12/B Automatic is the extended model producing 110 tea bags per minute. The tea is filled into a single chamber tea bag. The bag itself is formed from filter paper, that is heat sealed. Simultaneously tags are attached to the thread. The thread is attached to the filter bag without the use of staples, or glue. The thread is then wound around the tea bags. The paper overwrapping material is formed around the tea bags, that are also heat sealed.The completed filter tea bags are grouped in 25 piece lots. The groups are inserted in upright position and placed in either 25, 50 or 100 count boxes (in 1, 2 or 4 rows) by the packer.
As an option you can order this packer as a EC 12Y model, which will produce bigger volume tea bags.
The machine was also designed to work together with the AC 8 cartoner, allowing the two to work together as an automatic assembly line.
Images
Main advantages of our tea bagging machines
High Performance
the EC 12 will output 120 teabags every minute;Reliability
the EC 12 Series tea bagging machinery has a long, stable development base, which will ensure high reliability and minimal downtime;Extreme simplicity
the operation of our equipment is simple and is also quick to learn;Low Price
it is one of the most un-expensive tea bagging machines in the market;One operator
one operator can easily operate the packer;Big bag option
as an option, you can select the big bag (major volume) option for your tea bagging machine (not available for EC 12/C);Accessories to ease your work
you can add conveyors, pneumatic feeders, spiral-tube feeders, auger fillers and weight scales and even custom built equipment to ease your production and to make it more efficient;
