Liquid Fillers: Gravity Filler, Pressure Filler

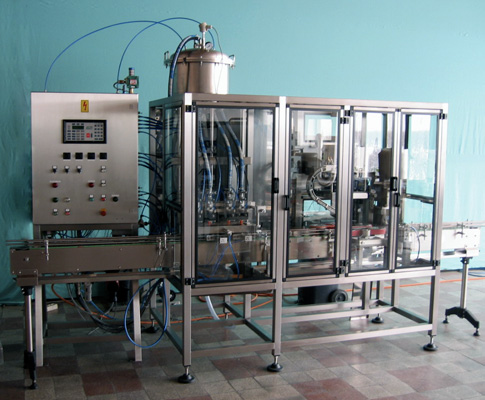

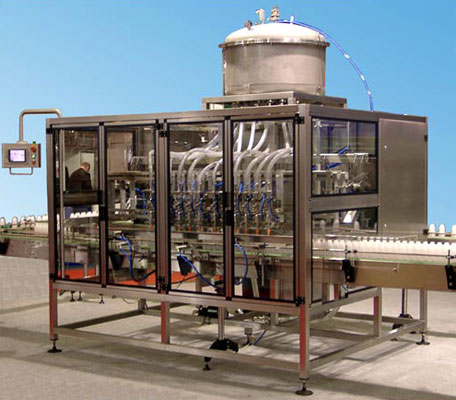

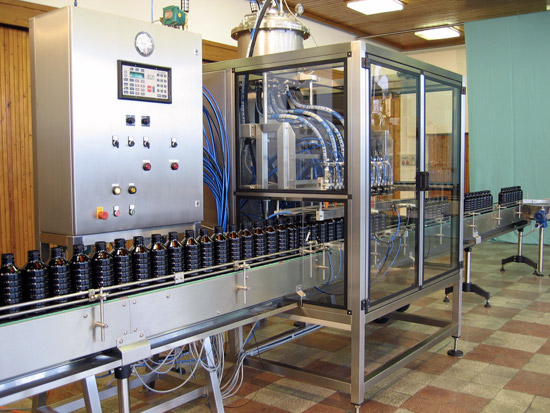

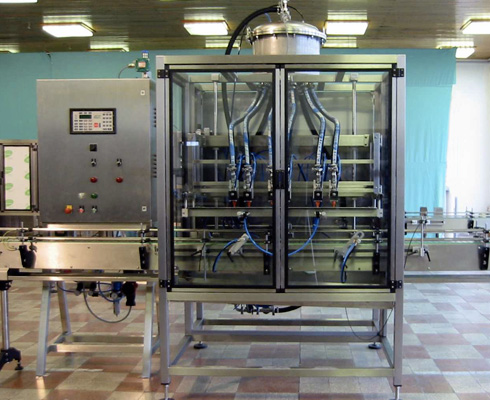

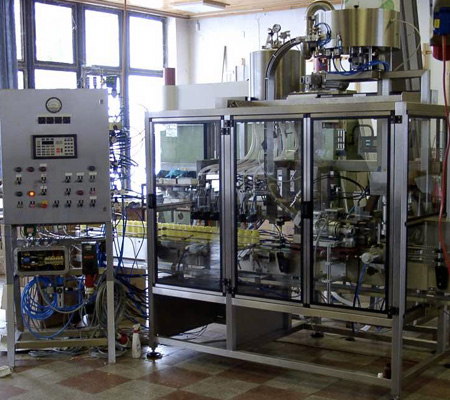

Explosion-proof Pressure/Gravity Liquid Filler
Gravity and pressure fillers can have 4 to 20 heads and are ideal for filling thin or semi viscous liquids. AMSY offers single line fillers up to 100 BPM and duplex models for above 100 BPM depending on the volume to be filled and the shape of the container. Our fillers let you adjust the filling volume accurately using the built in control panel from one drop to 25 liters.
Approximate installation information
| No. of filling heads | Dimension (mm) | Conveyor lenght (mm) | Electric Power | Compressed Air (m3/h) | Mass-duplex-(kg) |
| 4 | 1460 x 1500 x 2600 | 4000 | 380V 3kW | 10 | 920 |
| 6 | 1460 x 1500 x 2600 | 4000 | 380V 4kW | 11 | 960 |
| 8 | 1460 x 1500 x 2600 | 4000 | 380V 5kW | 12 | 1000 |
| 10 | 1460 x 1500 x 2600 | 4000 | 380V 6kW | 13 | 1040 |
| 12 | 3000 x 1500 x 2600 | 6000 | 380V 7kW | 14 | 1220 |
| 14 | 3000 x 1500 x 2600 | 6000 | 380V 8kW | 15 | 1260 |
| 16 | 3000 x 1500 x 2600 | 6000 | 380V 9kW | 15 | 1300 |
| Standard conveyor height: 850 +/- 50 mm | |||||
