Liquid Fillers: Net Weight Filler

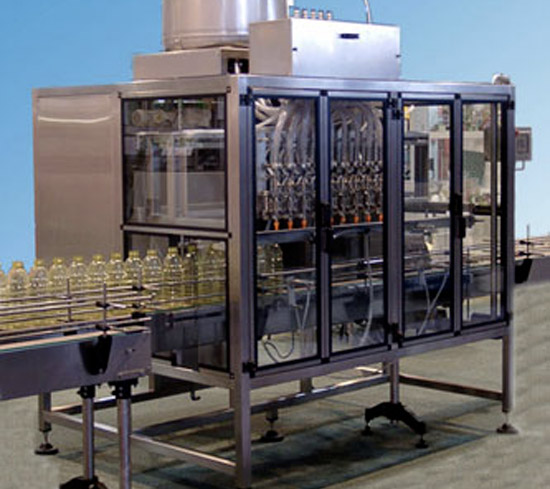

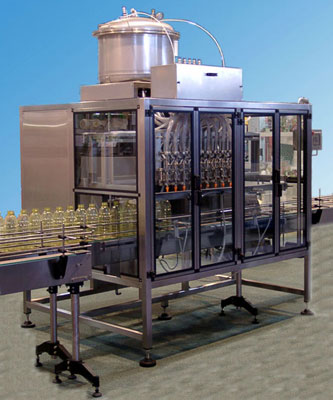

Net Weight Filler
Net weight fillers are perfect solutions when you need the most accurate filling. It is the ideal solution for precise filling applications, expensive products, strict filling requirements, small production runs. Our net weight fillers are customizable from 4 to 20 heads, in single or duplex configurations. This is the most accurate and most versatile filler in our selection. Changeover are simpe, fast and cost effective, aking it ideal for companies with multiple products or frequent changeovers.
Approximate installation information
| No. of filling heads | Dimension (mm) | Conveyor lenght (mm) | Electric Power | Compressed Air (m3/h) | Mass-duplex-(kg) |
| 4 | 1460 x 1500 x 2600 | 4000 | 380V 3kW | 10 | 920 |
| 6 | 1460 x 1500 x 2600 | 4000 | 380V 4kW | 11 | 960 |
| 8 | 1460 x 1500 x 2600 | 4000 | 380V 5kW | 12 | 1000 |
| 10 | 1460 x 1500 x 2600 | 4000 | 380V 6kW | 13 | 1040 |
| 12 | 3000 x 1500 x 2600 | 6000 | 380V 7kW | 14 | 1220 |
| 14 | 3000 x 1500 x 2600 | 6000 | 380V 8kW | 15 | 1260 |
| 16 | 3000 x 1500 x 2600 | 6000 | 380V 9kW | 15 | 1300 |
| Standard conveyor height: 850 +/- 50 mm | |||||
