Four new models for many new applications
When we designed this new series of vacuum cleaners, we considered the operators' demands, the vacuuming needs of companies and certified these machines in accordance with the safety directives established by European legislation such as ATEX, TUV (L, M, H), GS, CESI.
Password: modularity
Modularity is another innovative aspect. By purchasing a vacuum cleaner you can adapt it to any requirement both now and in the future. This means that the vacuum cleaner will always match up to the applications dictated both by developments in your company and international legislation.
Designed to be productive
Every detail of the vacuum cleaner has been designed for easy use and to allow the cleaning and servicing operations to be quickly accomplished. Reducing down time hence saving money.
Not just cleaning
These powerful and versatile vacuum cleaners can be used for several tasks: they can be used as continuous extractors on process machines, to extract from several points at the same time, to convey large quantities of materials from one point in the factory to another.
Functions of these models
- Cartrige filter
- Ergonomic filter shaker built into the head
- Star filters available
- Polyester (class "L")
- PTFE (class "M")
- Antistatic
- PTFE antistatic
- High temperature
- Tangential inlet
- Vacuum meter (manometer)
- Safety filter housing
- metallic
- class "G"
- absolute hepa class "H"
- Painted or stainless steel easy to empty pull-out bin on wheels
- Tool holder
- 2.2 or 4 kW power unit
- Ulpa absolute filter built into the exhaust chamber
Safety
- Phase sequencer
- Outlet airspeed < 1m/s
- Quieter
- Relief valve
- Easy access to motor via hinged door
- Cable bracket
Efficiency
- Pre wired for optional extras
- Electric filter shaker availableon ∅ 460 and ∅ 560
- Large wheels
- Steel plating at inlet to reduce wear
- Clamp fastening

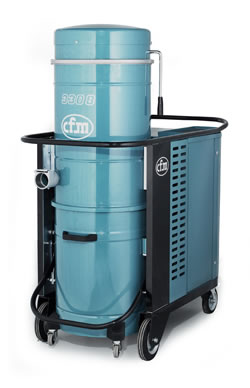

3308
The 3308 is a powerful threephase industrial vacuum cleaner that quickly removes rubble, solid materials and liquids. A 2.2 kW power rating allows this model to be used in any production enviroment. Model 3308 is typically used for daily cleaning operations in production areas and for servicing process machinery: fast, flexible, essential.
Specifications
- Phases: 3
- Rated power: 2,2 kW
- Depression: 3000 daPa
- Airflow: 5100 l/min
- Main filter area: 19500 cm2
- Sound level: 69 dB(A)
- Dust bag/tank capacity: 100 liters
- Weight: 198 kg
- Dimensions (HxWxL): 1,57x1,25x0,65 m
