Industrial Vacuum Cleaners: Threephase 3508W
Four new models for many new applications
When we designed this new series of vacuum cleaners, we considered the operators' demands, the vacuuming needs of companies and certified these machines in accordance with the safety directives established by European legislation such as ATEX, TUV (L, M, H), GS, CESI.Password: modularity
Modularity is another innovative aspect. By purchasing a vacuum cleaner you can adapt it to any requirement both now and in the future. This means that the vacuum cleaner will always match up to the applications dictated both by developments in your company and international legislation.Designed to be productive
Every detail of the vacuum cleaner has been designed for easy use and to allow the cleaning and servicing operations to be quickly accomplished. Reducing down time hence saving money.Not just cleaning
These powerful and versatile vacuum cleaners can be used for several tasks: they can be used as continuous extractors on process machines, to extract from several points at the same time, to convey large quantities of materials from one point in the factory to another.Functions of these models
- Cartrige filter
- Ergonomic filter shaker built into the head
- Star filters available
- Polyester (class "L")
- PTFE (class "M")
- Antistatic
- PTFE antistatic
- High temperature
- Tangential inlet
- Vacuum meter (manometer)
- Safety filter housing
- metallic
- class "G"
- absolute hepa class "H"
- Painted or stainless steel easy to empty pull-out bin on wheels
- Tool holder
- 2.2 or 4 kW power unit
- Ulpa absolute filter built into the exhaust chamber
Safety
- Phase sequencer
- Outlet airspeed < 1m/s
- Quieter
- Relief valve
- Easy access to motor via hinged door
- Cable bracket
Efficiency
- Pre wired for optional extras
- Electric filter shaker availableon ∅ 460 and ∅ 560
- Large wheels
- Steel plating at inlet to reduce wear
- Clamp fastening

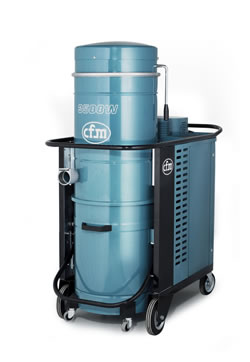

3508W
The new threephase model 3508W, suitable to be used in many industrial sectors, allows a continuous growth of safety and profitability. This is the star of CFM's production range: an optimum quality/price ratio and the utmost in flexible operation. Thanks to the 4 kW threephase motor and a notable air flow rate, model 3508W is able to quickly vacuum up a wide variety of products. This vacuum the leading model of its range, as it can solve all the problems concerning the cleanliness of the work environments. The modularity distinguishes the 3508W, which can be used for different applications.New absolute filter, new electrical filtershaker, new accessories compartment, new upstream safety filter, and new bagging methods: these are some of the new features of this machine. It is available in two versions: with major airflow or with major depression. Conversion kits can also be obtained to adapt this vacuum cleaner to any requirement.
Specifications
- Phases: 3
- Rated power: 4 kW
- Depression: 3000 daPa
- Airflow: 8600 l/min
- Main filter area: 19500 cm2
- Sound level: 73 dB(A)
- Dust bag/tank capacity: 100 liters
- Weight: 220 kg
- Dimensions (HxWxL): 1,57x1,25x0,65 m
