Industrial Vacuum Cleaners: Threephase ECO-OIL 22
The advantages of the OIL models
The advantages of using the OIL models are countless. These were specifically designed to recover oil, viscose liquids and swarf, capable of separating the solids from the liquids by means of "macro-filtration". This operation allows the operator to recycle the recovered oil. The OIL models are ideal to empty sumps with simple and time-saving operation. For instance, to empty a 1.000 liter tank two people require approximately 4-6 hours; with a Oil model the same two people only need one hour to perform the job; with significantly improved quality.How do OIL models operate?
Oil, liquids and swarf collection is generally achieved using an oil resistant rubber hose. The liquid part is seperated from the swarf - which is trapped in the swarf container - and sucked into the tank; inside the tank there is an automatic level control which cuts off the power when the tank is full.Suction can be resumed only after emptying the tank completely. At this point the liquid can be pumped back into the automatic machine by means of a pump, while the swarf container is emptied manually.
Save oil and time
The most efficacious method to save oil and time: The Oil series- Increased life of tools reducing regrinding costs and increasing periods between replacement;
- Possibility to recycle collected liquids thanks to the new chemical additives available that prevent the formation of mould and bacteria, without altering the characteristics of the oils;
- Improved quality of work;
- Improved environmental hygiene;
- User-friendly and easy to manoeuvre.

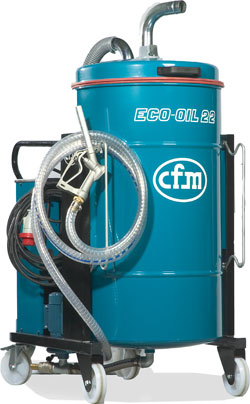

ECO-OIL 22

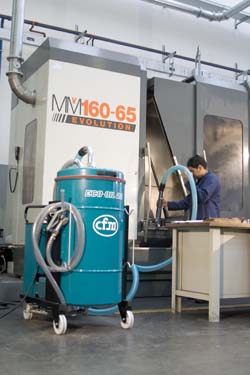

The industrial vacuum ECO-OIL 22 actually represents the ultimate solution for the metalworking companies which need to clean up their own machine-tools. The new model ECO-OIL 22 in fact can collect swarfs and oil at the same time and can separate the swarfs from the oil carrying out also a macro-filtration. After that, throught the ECO-OIL 22, it's possible to pump the filtered oil inside the machine-tools through one comfortable pump and use it one more time.It's also available the single-phase 1,3 kW version (ECO-OIL 13)
Specifications
- Phases: 3
- Rated power: 2,2 kW
- Depression: 3300 daPa
- Airflow: 5100 l/min
- Main filter area: cm2
- Sound level: 71 dB(A)
- Dust bag/tank capacity: 180 liters
- Weight: 135 kg
- Dimensions (HxWxL): 1,50x0,67x1,05 m
