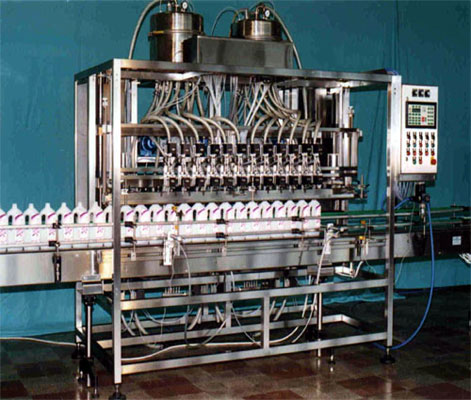

Liquid Fillers: Pump-Filler
AMSY's pump filler is simple ideal solution to fill viscous liquids like creams, ketchup, mayonese, salad dressings, etc. It a products viscosity varies with change of temperature, our positive displacement pumps compensate the difference in the filling volume, maintaining your productivity. Vegetable oil and motor oil can easily be filled with this type of filler. The tri filler is available from 4 to 20 heads, single or duplex line configurations depending on your speed needs and application. Depending on your requirements manual, semi-automatic, and fully automatic weight control can be chosen with this equipment.
Approximate installation information
| No. of filling heads | Dimension (mm) | Conveyor lenght (mm) | Electric Power | Compressed Air (m3/h) | Mass-duplex-(kg) |
| 4 | 1460 x 1500 x 2600 | 4000 | 380V 3kW | 10 | 920 |
| 6 | 1460 x 1500 x 2600 | 4000 | 380V 4kW | 11 | 960 |
| 8 | 1460 x 1500 x 2600 | 4000 | 380V 5kW | 12 | 1000 |
| 10 | 1460 x 1500 x 2600 | 4000 | 380V 6kW | 13 | 1040 |
| 12 | 3000 x 1500 x 2600 | 6000 | 380V 7kW | 14 | 1220 |
| 14 | 3000 x 1500 x 2600 | 6000 | 380V 8kW | 15 | 1260 |
| 16 | 3000 x 1500 x 2600 | 6000 | 380V 9kW | 15 | 1300 |
| Standard conveyor height: 850 +/- 50 mm | |||||
