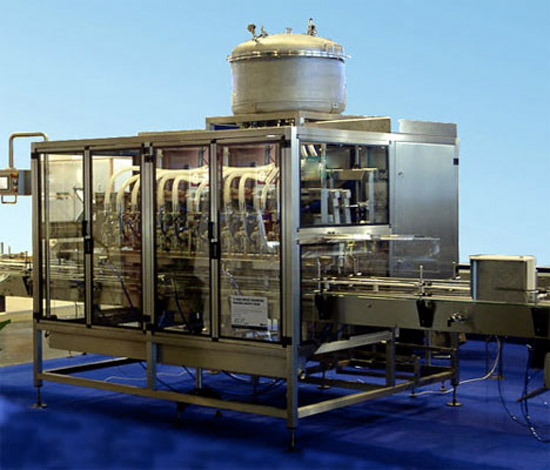

Liquid Filling Equipment: Flowmeter Filler
Flowmeter, duplex Filler
Our flowmeter fillers and fully automatic fillers with flowmeter control. This machinery allows the filling volume to be adjusted using touch-screen. Practically all types of liquids can be filled using the wide selection of different types of flowmeter units. This is a very flexible and modular machine available in simplex and duplex models depending on your requirement.
Approximate installation information
| No. of filling heads | Dimension (mm) | Conveyor lenght (mm) | Electric Power | Compressed Air (m3/h) | Mass-duplex-(kg) |
| 4 | 1460 x 1500 x 2600 | 4000 | 380V 3kW | 10 | 920 |
| 6 | 1460 x 1500 x 2600 | 4000 | 380V 4kW | 11 | 960 |
| 8 | 1460 x 1500 x 2600 | 4000 | 380V 5kW | 12 | 1000 |
| 10 | 1460 x 1500 x 2600 | 4000 | 380V 6kW | 13 | 1040 |
| 12 | 3000 x 1500 x 2600 | 6000 | 380V 7kW | 14 | 1220 |
| 14 | 3000 x 1500 x 2600 | 6000 | 380V 8kW | 15 | 1260 |
| 16 | 3000 x 1500 x 2600 | 6000 | 380V 9kW | 15 | 1300 |
| Standard conveyor height: 850 +/- 50 mm | |||||
