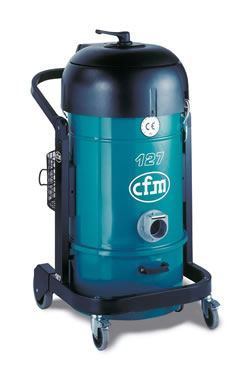

Industrial Vacuum Cleaners: Singlephase 127

A compact vacuum with all the feature of larger models

The following features ensure that the machine is ideal, not only for traditional cleaning, but also for extraction of fine powders from hand tools, grinders, lapping machines, etc. also the suction of asbestos and/or hot material from ovens, kilns, etc.
  • Silent: the quitest in its group.
  • Strong: solid structure, manufactured in top quality materials (such as steel - stainless steel - ABS).
  • Bin Emptying System: integral with the machine's handle.
  • Star Filter: the increased filter area (1,95 m2 - G category) giving high filtration levels.
  • External Filter Shaker: for constant efficiency.
  • Control Panel: with illuminated switches, manumeter and pressure switch plus and extra electrical socket.
  • Exhaust Air Diverter: for user comfort.
  • Tool Basket: large capacity tool basket and an optional extra absolute filter facility if required (0,3 micron). The model 127 can be fitted with various types of filters, polyester start filter for normal use (standard), Teflon for fine powders (optional), Nomex for high temperature use up to 240˚C (optional) or absolute filter for toxic material (optional) 99.999% efficiency.
The 127 is ideal for use in the medical, textile, food and ceramic industries.

Specifications

  • Phases: 1
  • Rated power: 2 kW
  • Depression: 2150 daPa
  • Airflow: 5400 l/min
  • Main filter area: 19500 cm2
  • Sound level: 68 dB(A)
  • Dust bag/tank capacity: 38 liters
  • Weight: 42 kg
  • Dimensions (HxWxL): 1,05x0,58x0,66 m
