Industrial Vacuum Cleaners: Singlephase ECO-OIL 13
The advantages of the OIL models
The advantages of using the OIL models are countless. These were specifically designed to recover oil, viscose liquids and swarf, capable of separating the solids from the liquids by means of "macro-filtration". This operation allows the operator to recycle the recovered oil. The OIL models are ideal to empty sumps with simple and time-saving operation. For instance, to empty a 1.000 liter tank two people require approximately 4-6 hours; with a Oil model the same two people only need one hour to perform the job; with significantly improved quality.How do OIL models operate?
Oil, liquids and swarf collection is generally achieved using an oil resistant rubber hose. The liquid part is seperated from the swarf - which is trapped in the swarf container - and sucked into the tank; inside the tank there is an automatic level control which cuts off the power when the tank is full.Suction can be resumed only after emptying the tank completely. At this point the liquid can be pumped back into the automatic machine by means of a pump, while the swarf container is emptied manually.
Save oil and time
The most efficacious method to save oil and time: The Oil series- Increased life of tools reducing regrinding costs and increasing periods between replacement;
- Possibility to recycle collected liquids thanks to the new chemical additives available that prevent the formation of mould and bacteria, without altering the characteristics of the oils;
- Improved quality of work;
- Improved environmental hygiene;
- User-friendly and easy to manoeuvre.

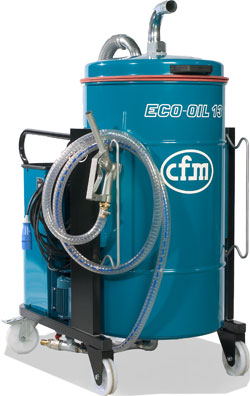

ECO-OIL 13
ECO-OIL 13 the new industrial vacuum cleaner, has been properly designed to collect swarfs and oil simultaneously. It is very easy to use and capable to separate the solids from the liquids by means of a "macro-filtration". This operation allows to recycle the recovered oil, saving money and it is very imporant in the mechanical industries which use big quantites of oil.The ECO-OIL models are available in 2 versions: singlephase (ECO-OIL 13) and threephase (ECO-OIL 22).
Specifications
- Phases: 1
- Rated power: 1,3 kW
- Depression: 3200 daPa
- Airflow: 2675 l/min
- Main filter area: cm2
- Sound level: 70 dB(A)
- Dust bag/tank capacity: 180 liters
- Weight: 120 kg
- Dimensions (HxWxL): 1,5x0,67x1,05 m
