Industrial Vacuum Cleaners: Threephase 3558
Four new models for many new applications
When we designed this new series of vacuum cleaners, we considered the operators' demands, the vacuuming needs of companies and certified these machines in accordance with the safety directives established by European legislation such as ATEX, TUV (L, M, H), GS, CESI.Password: modularity
Modularity is another innovative aspect. By purchasing a vacuum cleaner you can adapt it to any requirement both now and in the future. This means that the vacuum cleaner will always match up to the applications dictated both by developments in your company and international legislation.Designed to be productive
Every detail of the vacuum cleaner has been designed for easy use and to allow the cleaning and servicing operations to be quickly accomplished. Reducing down time hence saving money.Not just cleaning
These powerful and versatile vacuum cleaners can be used for several tasks: they can be used as continuous extractors on process machines, to extract from several points at the same time, to convey large quantities of materials from one point in the factory to another.Functions of these models
- Cartrige filter
- Ergonomic filter shaker built into the head
- Star filters available
- Polyester (class "L")
- PTFE (class "M")
- Antistatic
- PTFE antistatic
- High temperature
- Tangential inlet
- Vacuum meter (manometer)
- Safety filter housing
- metallic
- class "G"
- absolute hepa class "H"
- Painted or stainless steel easy to empty pull-out bin on wheels
- Tool holder
- 2.2 or 4 kW power unit
- Ulpa absolute filter built into the exhaust chamber
Safety
- Phase sequencer
- Outlet airspeed < 1m/s
- Quieter
- Relief valve
- Easy access to motor via hinged door
- Cable bracket
Efficiency
- Pre wired for optional extras
- Electric filter shaker availableon ∅ 460 and ∅ 560
- Large wheels
- Steel plating at inlet to reduce wear
- Clamp fastening

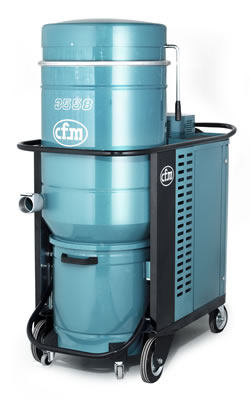

3558
Industrial vacuum suitable to collect big quantities of powders, even the finest ones, equipped with a filtering chamber of big dimensions and with a filter of large surface. The new model is equipped with electronical parts able to drive the optional. By the use of this machine it is possibile to solve all the problems concerning the clenaliness of the work environments. The numerous kits available, make the machine modular.New absolute filter, new upstream safety filter, new manual filtershaker, the accessories compartment and the access to the motor compartment: all these particulars make the model 3558 and all the vacuum of this series, 3308 - 3508 - 3508W revolutionaries and exclusives.
Model 3558 has been specifically designed for cleaning up large quantities of dust thanks to its extremely high filtering capacity and high air flow rate. It is easily handled, simple to operate and silent, thus allowing it to be used in any production plant.
Specifications
- Phases: 3
- Rated power: 4 kW
- Depression: 3000 daPa
- Airflow: 8600 l/min
- Main filter area: 35000 cm2
- Sound level: 73 dB(A)
- Dust bag/tank capacity: 80 liters
- Weight: 238 kg
- Dimensions (HxWxL): 1,59x1,25x0,65 m
