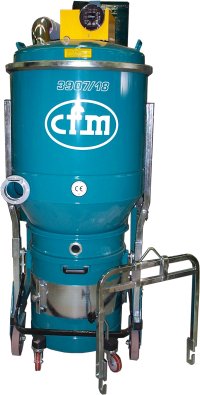

Industrial Vacuum Cleaners: Threephase 3907/18

Manufactured for strength, power and reliability

The 3707 and 3907 series vacuum cleaners are designed and manufactured for strength, power and reliability for continuous and heavy applications. The ample area and the large capacity of the drum guarantee long periods of work without stoppage.

• Reliable 3-phase vacuum units design for continuous use.
• Maintenance free thanks to direct motor/fan coupling and therefore without transmission.
• Very high performance levels thanks to their ability to vacuum heavy items and large amounts even at considerable distance.
• Primary star filter with extra large filter surface to guarantee long filter cleaning intervals. Available for toxic and high temperature products.
• Efficient filter cleaning system by means of external manual or electric driven filter shaking system (standard on model 3907/18).
• Filter blockage level monitoring with vacuum gauge displaying filter blockage level.
• Absolute filter to vacuum toxic material (optional).
• Removable drum with a handy clip release.
• Control panel with on/off buttons, hour counter and vacuum gauge.
• Watertight electric cabinet with star-delta starling.
• Highly maneuverable, thanks to the two rear casters with Vulkolan tires and parking brake.
• Stainless steel, explosion-proof version with power rating, size and holding capacity to meet specific customer needs.

3907/18

Threephsae vacuums in this series also include the 13 kW (18 HP version) when big cleaning jobs are required and for permanent installations. Absolute filters can also be supplied with these models as optionals. Versions:

• Version with a 780 diameter filtering chamber (3907/18 780).
• Version with a 780 diameter filtering chamber and cartridge filter (3907/18 780C).

Specifications

• Phases: 3
• Rated power: 13 kW
• Depression: 4400 daPa
• Airflow: 18000 l/min
• Main filter area: 45000 cm²
• Sound level: 78 dB(A)
• Dust bag/tank capacity: 175 liters
• Weight: 360 kg
• Dimensions (HxWxL): 1,80x0,83x1,65 m
