Trim-extractors
The mode "R" vacuums are used to extract trim (paper, plastic, fabric) from production lines. Suction power, construction features and dimensions are therefore tailored according to the production machines they need to serve. CFM model R vacuums are mainly used in the following industrial sectors:
- packaging: extraction of various kinds of trim from packaging machines (for this type of application we recommend the X - stainless steel - version);
- textile: to extract trim and dust during manufacturing processes, in order to avoid machine stoppages and periods of inactivity;
- paper: for continuous extraction of paper trim and dust during finishing processes in the production of paper goods.
How does the R models work?
The trim is extracted and recovered in the nylon liner. Thanks to the position of the motor, the liner is spread out and completely open and all product vacuumed in is neatly compacted on the bottom, optimizing the capacity of the container. To empty the vacuum it is sufficient to open the lid and remove the nylon liner. Should the product consist of fine dust an optional specific filter is available.
What are the benefits of the R models?
- Improved production time: the trim-extractor avoids all stoppages caused by the need to clean the production machines.
- Cleaner environments: the R models prevents waste products from contaminating the environment and working areas.
- Top quality products: removing the trims as soon as they are generated allows you to verify in real time if the finished product meets the high quality standards required, without clogging the cutting machines with waste materials. At the same time, the working environment is thoroughly dedusted.
- Better production organization: the speed and ease with which waste materials can be disposed of allow you to accurately calculate the amount of time required for this operation, improving the quality and organization of the manufacturing process.

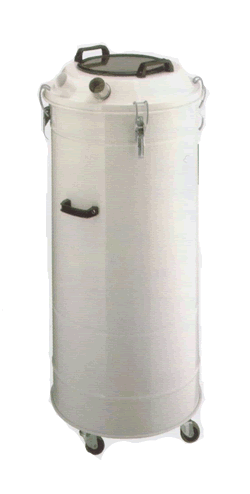

R 305
Threephase industrial vacuum for trims and waste. It is used in packaging, food, textile and pharmaceutical productions. Versions:
- painted version (R 305 V)
- stainless steel version (R 305 X)
Specifications
- Phases: 3
- Rated power: 2,2 kW
- Depression: 3100 daPa
- Airflow: 4600 l/min
- Main filter area: cm2
- Sound level: 75 dB(A)
- Dust bag/tank capacity: 150 liters
- Weight: 61 kg
- Dimensions (HxWxL): 1,30x0,68x1,16 m
